FLIM LABS is an Italian technology company pioneering accessible, portable, and user-friendly fluorescence lifetime analysis solutions. Through innovative instrumentation and real-time data processing, FLIM LABS enables researchers to unlock new possibilities in fluorescence-based applications.
Quantum Photonics Bundle
Your gateway to quantum photonics: a fully integrated, PC-controlled bundle that unites a stable pulsed laser, a single-photon detector and high-resolution timing in one compact, portable system. Designed for cutting-edge research, university teaching and scientific dissemination.

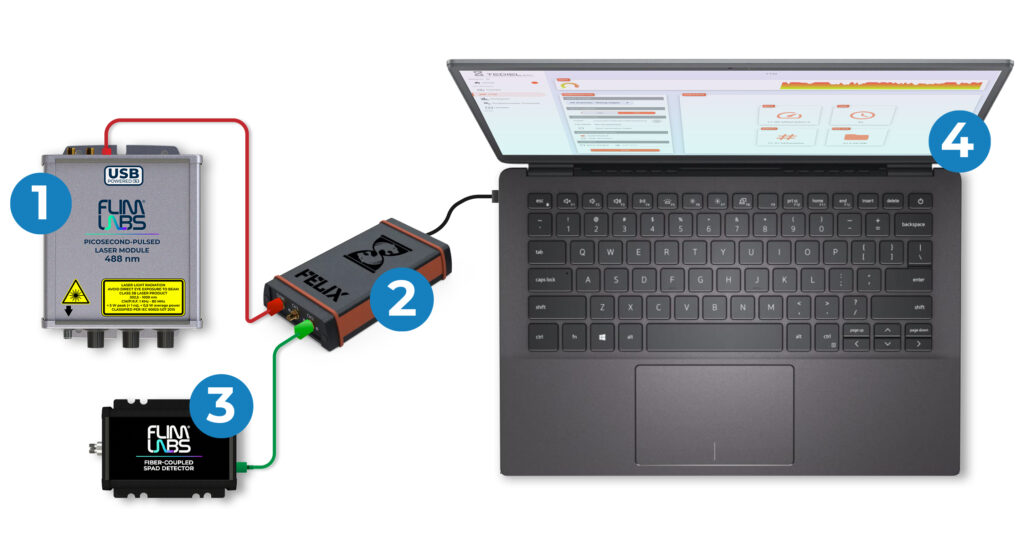

What you get:
Laser
SPAD
FELIX
TDC Software

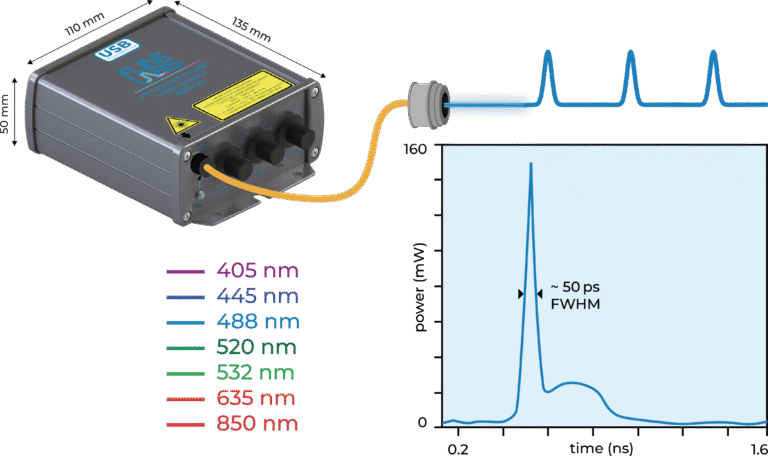

Laser
- Dimensions: 135×110×50 mm
- Power Supply: USB Type-C
- Wavelengths: 405, 445, 488, 520, 532, 635, 850 nm
- Pulse Duration: Down to 50 ps (FWHM)
- Repetition Rate: 1 kHz to 80 MHz
- Peak Power: Up to 150 mW
- Optical Output: Single-mode FC/PC
- Triggering: Internal and external
- Configuration: Software or manual

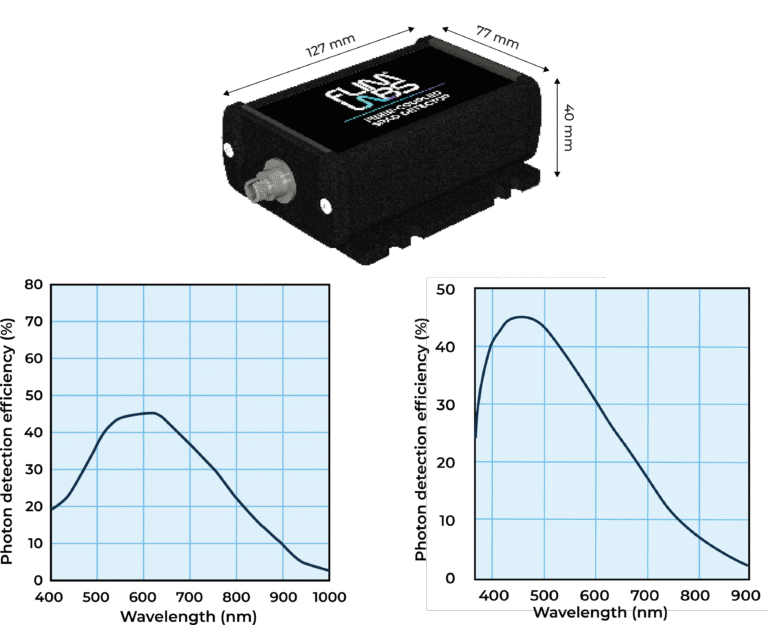

SPAD
- Spectral Response Range: 400–1000 nm (Blue) or 370-900 nm (Red)
- Peak Sensitivity Wavelength: 630 nm (Blue) or 450 nm (Red)
- Timing Jitter (r.m.s.): < 150 ps
- Dark Count Rate: 20 cps (Blue) or 7 cps (Red)
- Maximum Count Rate: 3 Mcps (Blue) or 3.5 cps (Red)
- Photosensitive Area: 50 µm
- Max Incident Optical Power: 50 µW
- Optical Interface: FC-type fiber connector
- Electrical Output: LVTTL 2.5 V @ 50 Ω
- Power Supply: USB Type-C
- Enclosure Dimensions: 127×77×40 mm
FELIX
- Single-shot precision: 12 ps r.m.s.
- Number of channels: 2+sync
- Dead-time: 9.6 ns
- Channel rate: 98 Msps
- Global rate: 140 Msps
- Absolute INL: < 19 ps
- Absolute DNL: < 0.8 ps
- Input voltage level: 0 – 3.3 V
- Programmable threshold: 0 – 2.5 V

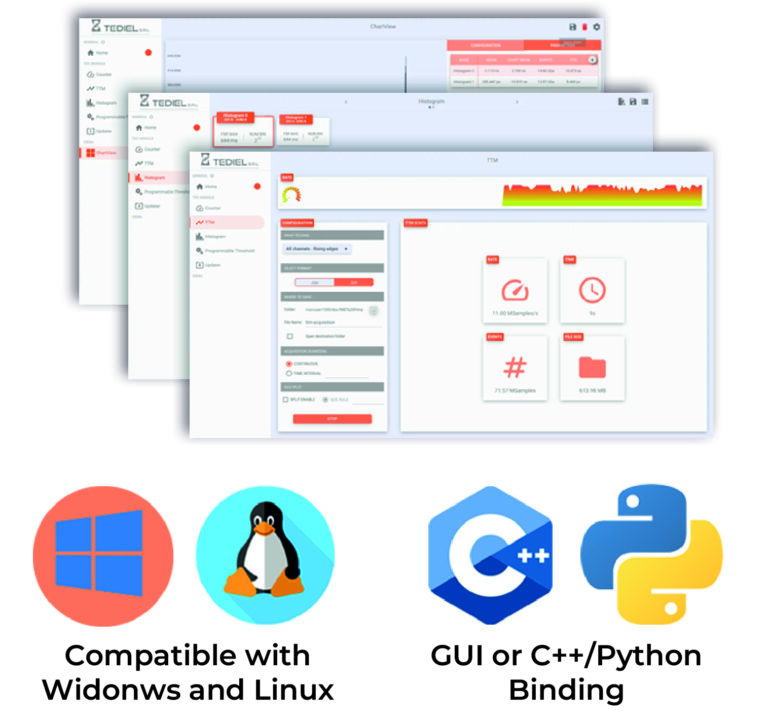

TDC Software
- Software: GUI, Python/.NET + APIs
- Compatibility: Linux and Windows
Request a quote and download the Application Note
